State-of-the-Art Safety System 8000kg CNC 5-Axis Bridge Cutting Machine for Superior Manufacturing

Name: StateoftheArt Safety System 8000kg CNC 5Axis Bridge Cutting Machine for Superior Manufacturing
Brand: XIANDA MACHINERY
Price: 1 USD

China State-of-the-Art Safety System 8000kg CNC 5-Axis Bridge Cutting Machine for Superior Manufacturing wholesale

Brand Name : XIANDA MACHINERY

Model Number : Create 450/600

Place Of Origin : Jinjiang,Fujian,China

Certification : API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF

MOQ : 1 SET

Price : To Be Negotiable

Packaging Details : Plastic Package, Suitable For Sea Transportation

Delivery Time : 1 Month

Payment Terms : L/C， T/T， D/P， Western Union ，Paypal ，Money Gram， Others

Supply Ability : 1000 Sets/Year

Keyword : High Speed Cutting Saw,Horizontal Metal Bandsaw Cutting Machine,Automatic Cutting Saw Machine,Metal Cutting Band Saw

Power(w) : 380V

Saw blade diameter : 350-600mm

Color : Normal Yellow and Black or Customizable

Table Movement : Automatic

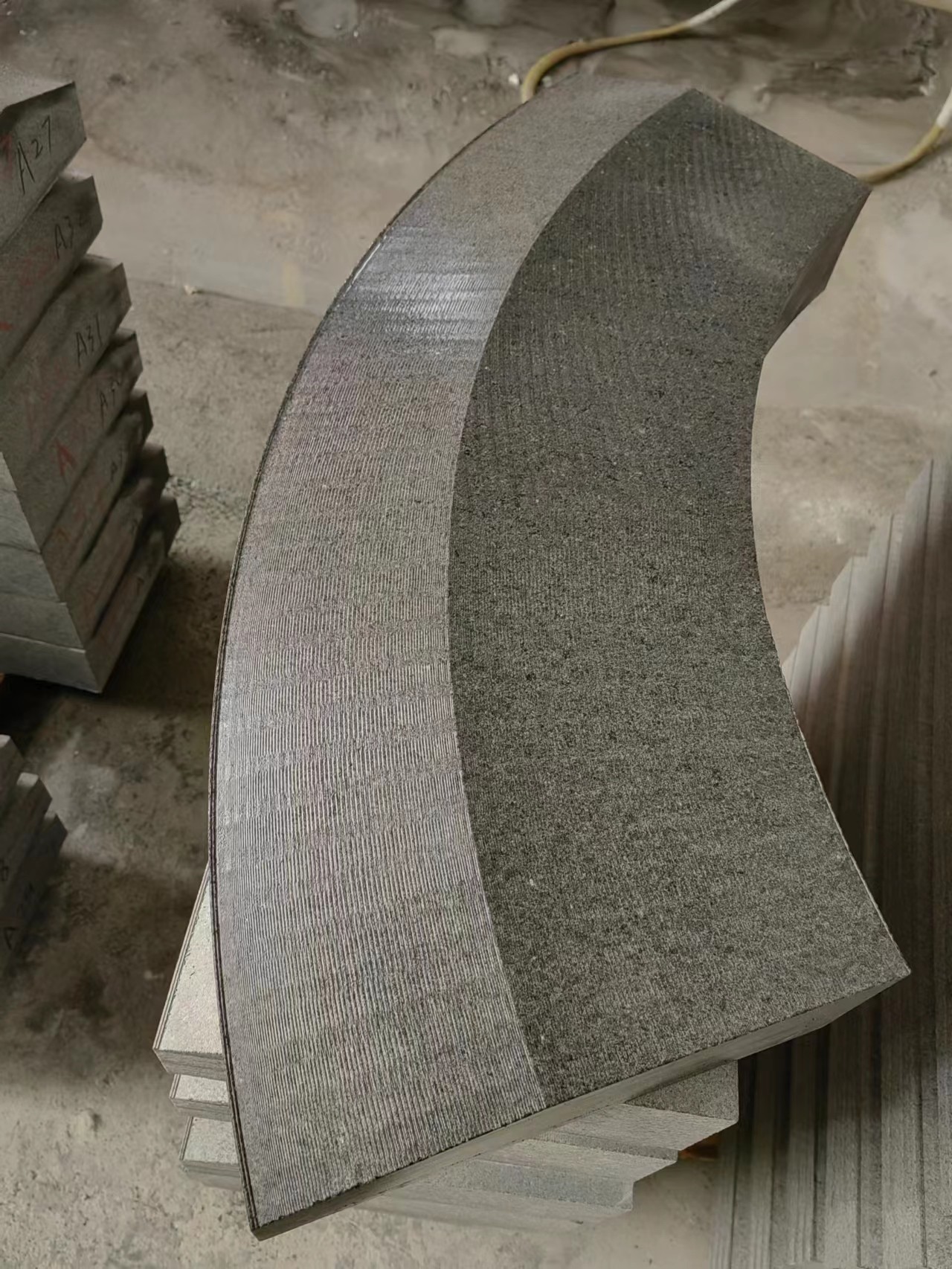

Usage : Edge Profiling (Ogee, Bullnose, Waterfall) 3D Contour Cutting Sink Cutouts & Complex Geometric Patterns

Advantage : Fast Cutting Speed,High Sharpness

Origin : Jinjiang, Fujian, China

Contact Now

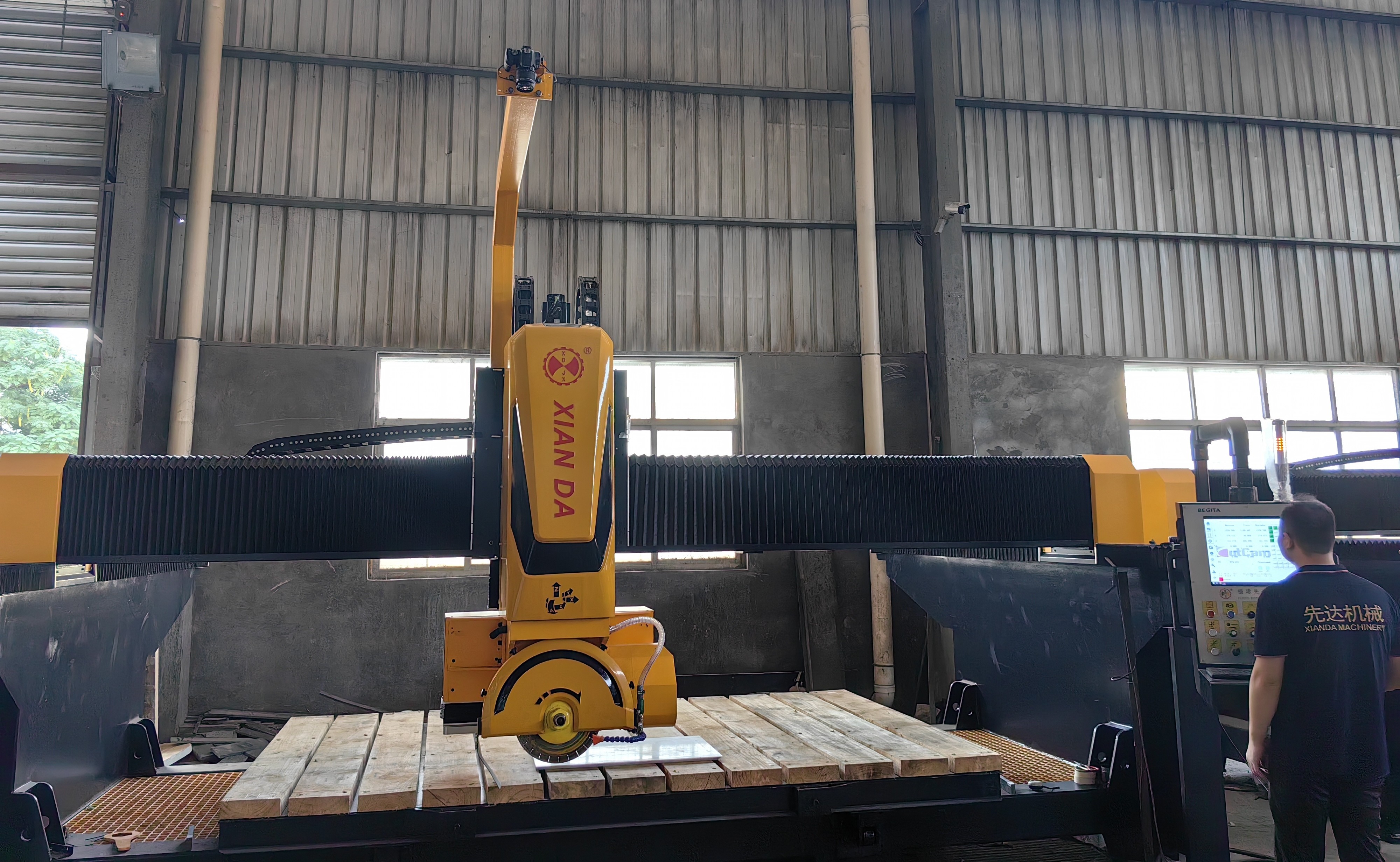

State-of-the-Art Safety System 8000kg CNC 5-Axis Bridge Cutting Machine for Superior Manufacturing

1.Technical Specifications

• Control System: 5-axis linkage CNC with intuitive programming interface.
• Drive System: Absolute value servo motor (bus communication protocol).
• Transmission: Ball screw + linear guide rail.
• Structure: Reinforced steel frame with oil-immersed track.
• Accuracy: ±0.02mm (repeat positioning).
• Power Supply: Standard industrial voltage (customizable).

2.Why Choose Our 5-Axis Bridge Cutting Machine?

✅ High Precision & Consistency: Achieve flawless finishes for luxury stone products.
✅ Robust Stability: Built to withstand heavy-duty, continuous operations.
✅ Versatile Processing: Handle diverse shapes, sizes, and materials effortlessly.
✅ Space-Saving Design: Optimize floor space without compromising performance.
✅ Low Maintenance: Durable components reduce downtime and operational costs.

Parameter	Unit	Create 450	Create 600
Blade diameter range	mm	350-450	350-600
Max processing size	mm	32002000120	34002000180
Lifting stroke	mm	300	500
Worktable size	mm	3200*2000	3400*2000
Table tilting degree	°	0-85°	0-85°
Head rotating degree	°	0-360°	0-360°
Air speed	m/min	15	15
Repeated accuracy of positioning	mm	0.1mm/1000	0.1mm/1000
Main motor	kw	18.5(Permanent magnetic system synchronous motor)	22(Permanent magnetic system synchronous motor)
Gross power	kw	26	30
Water consumption	m³/h	3	3
Outline dimension	mm	560036003500	580036503900
Head tilting degree	°	0-90°	0-90°
Gross weight	kg	6000	7500

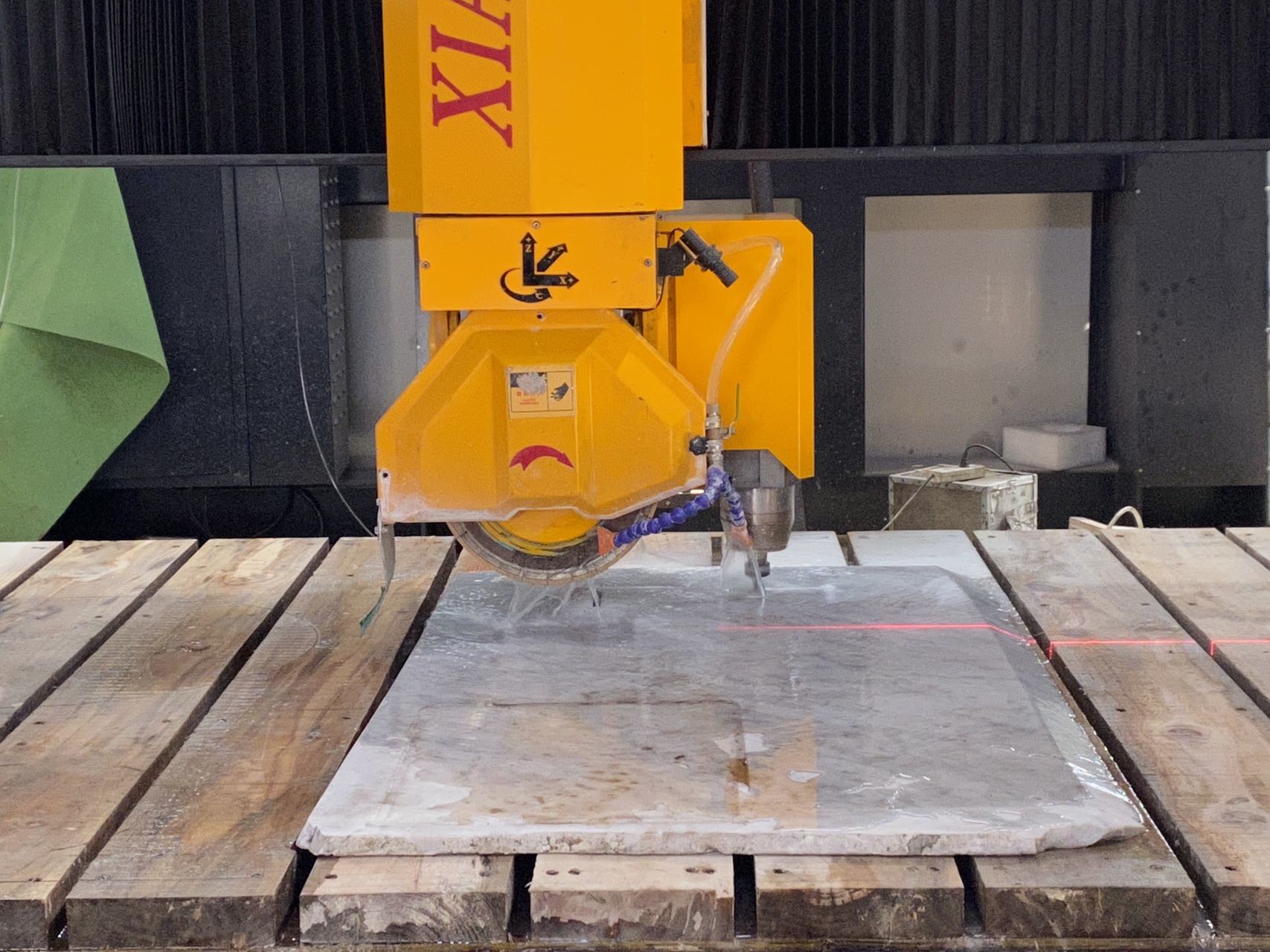

State-of-the-Art Safety System 8000kg CNC 5-Axis Bridge Cutting Machine for Superior Manufacturing

Support and Services

- Installation guidance and setup assistance for the machine.
- Troubleshooting support for any technical issues that may arise.
- Training sessions for operators on how to use the machine efficiently.
- Regular maintenance services to ensure optimal performance and longevity of the equipment.

Packing and Shipping

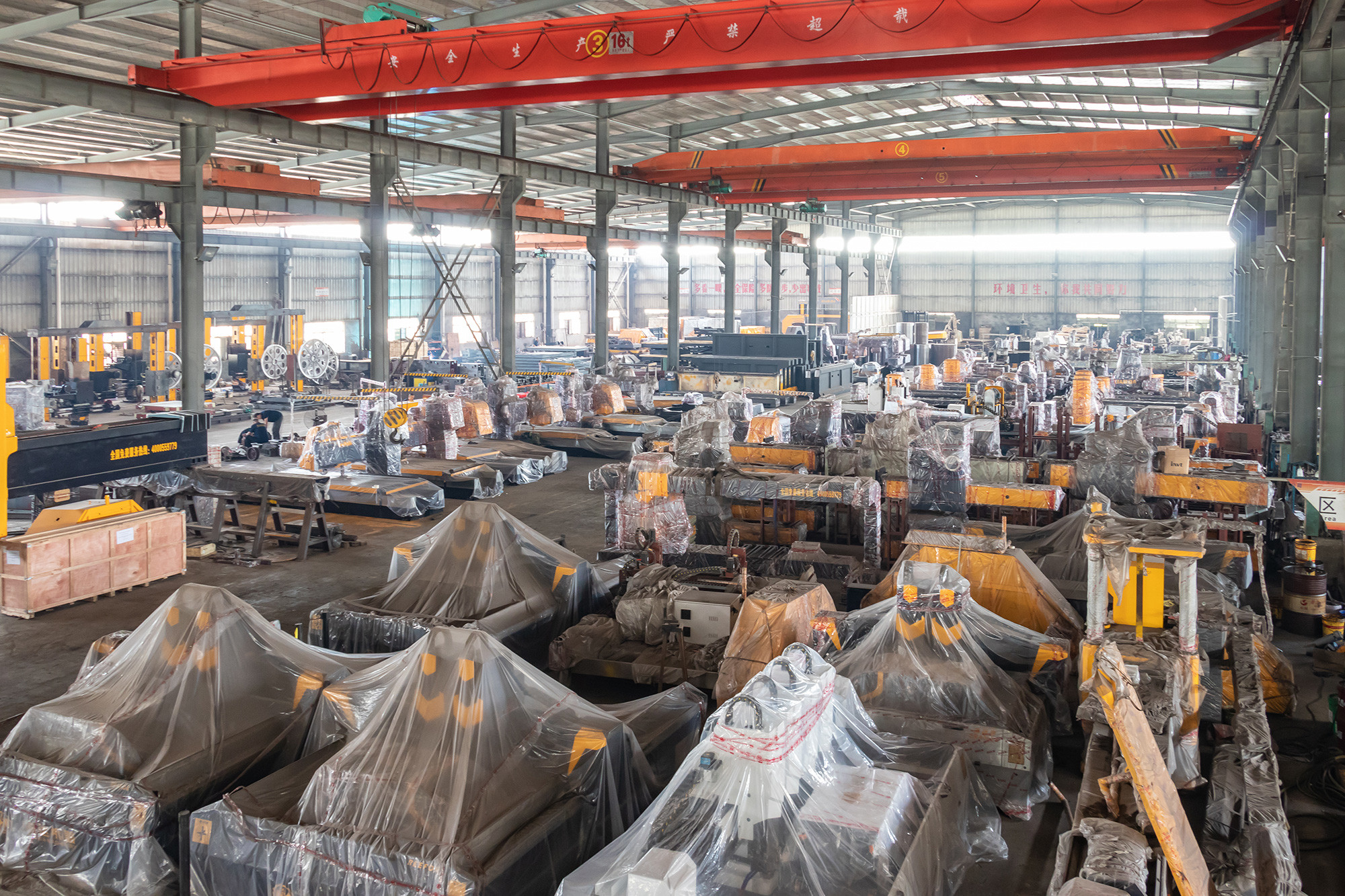

Product Packaging
The Machine is carefully packed in a sturdy wooden crate to ensure safe transportation. The machine is securely fixed within the crate to prevent any damage during shipping.
Shipping
We ship the Machine worldwide using trusted shipping services. The machine is shipped in a protective wooden crate to safeguard it from any potential damage during transit. Customers will receive tracking information once the order is shipped to monitor the delivery status.

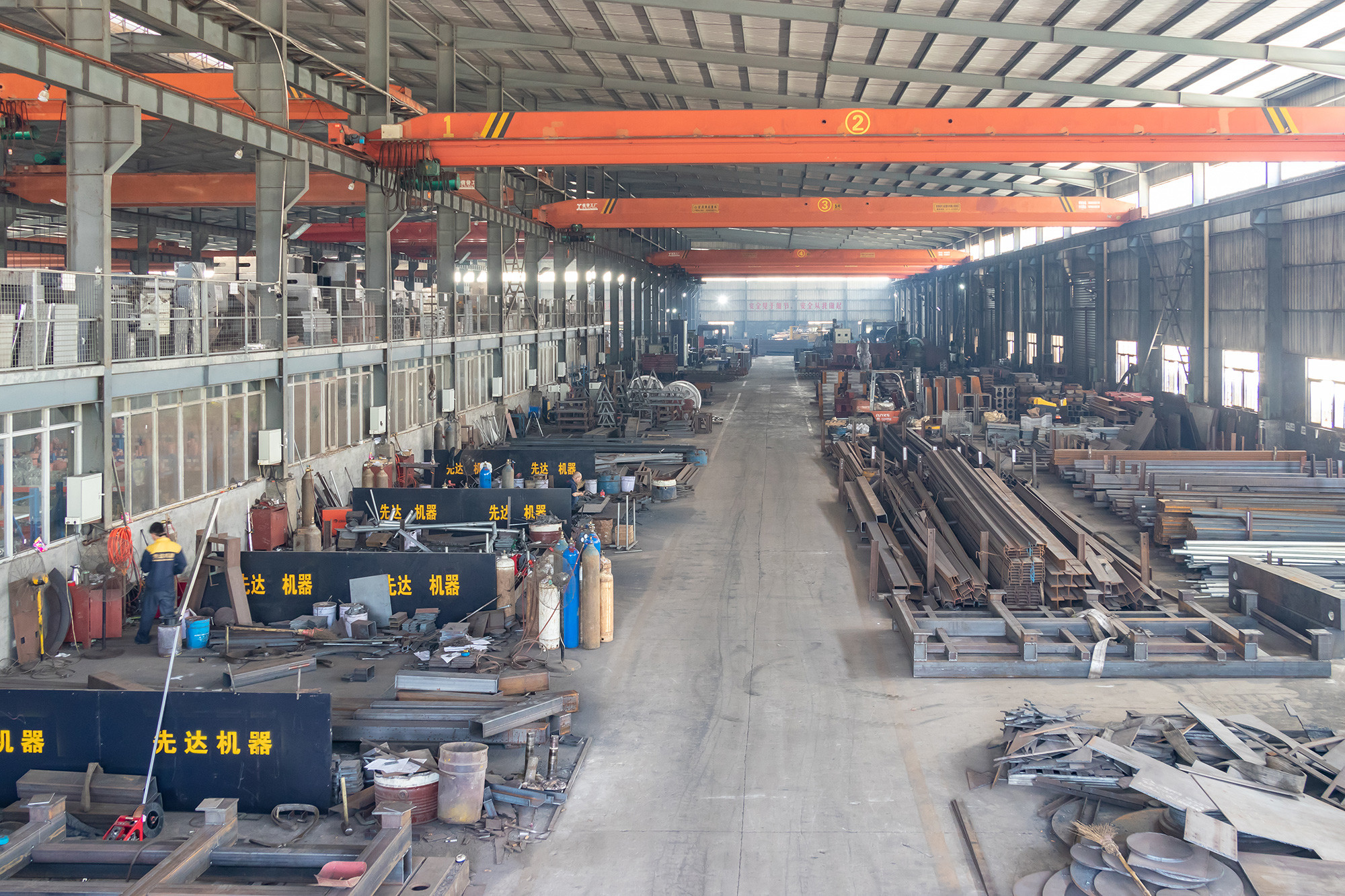

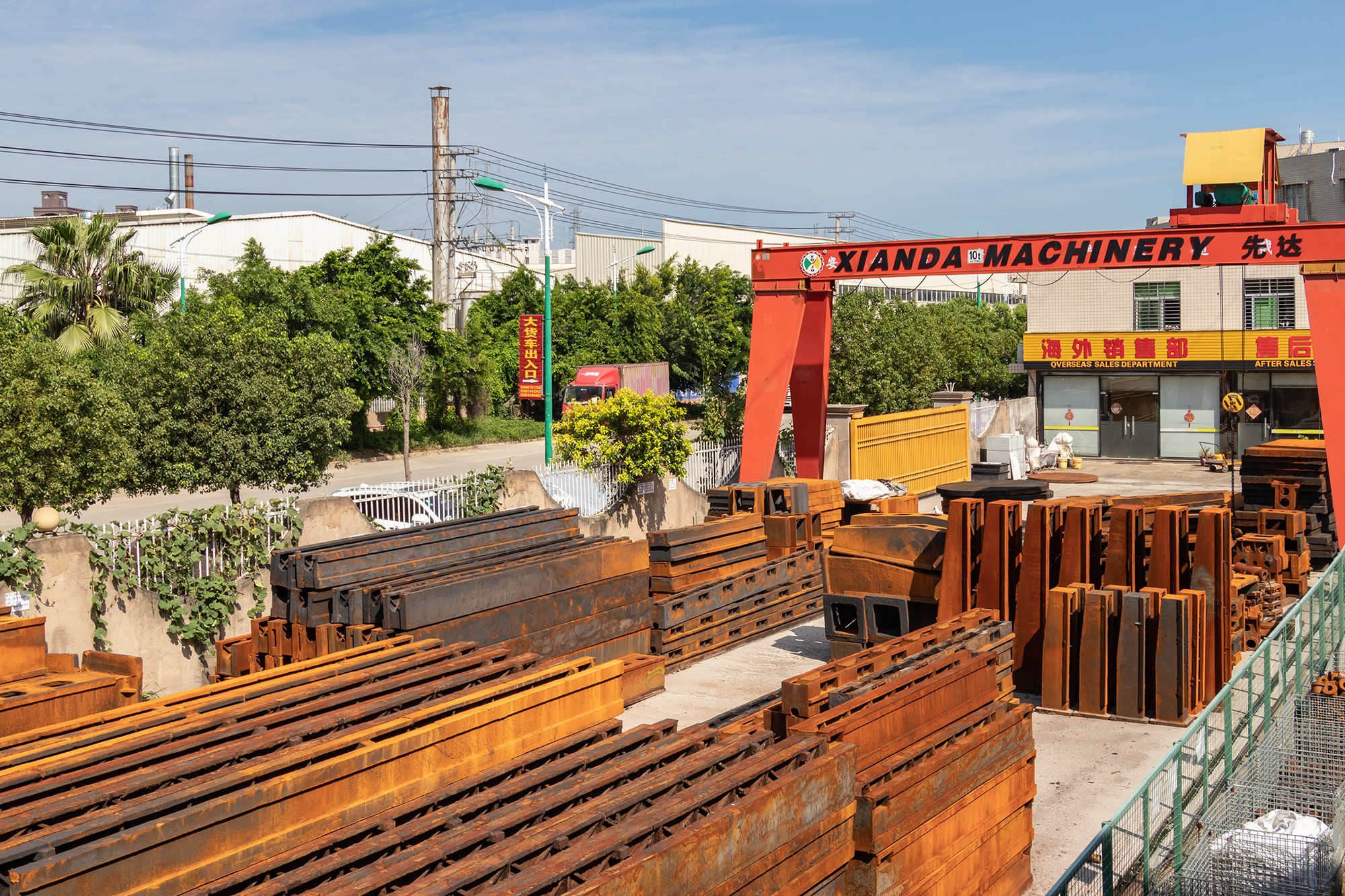

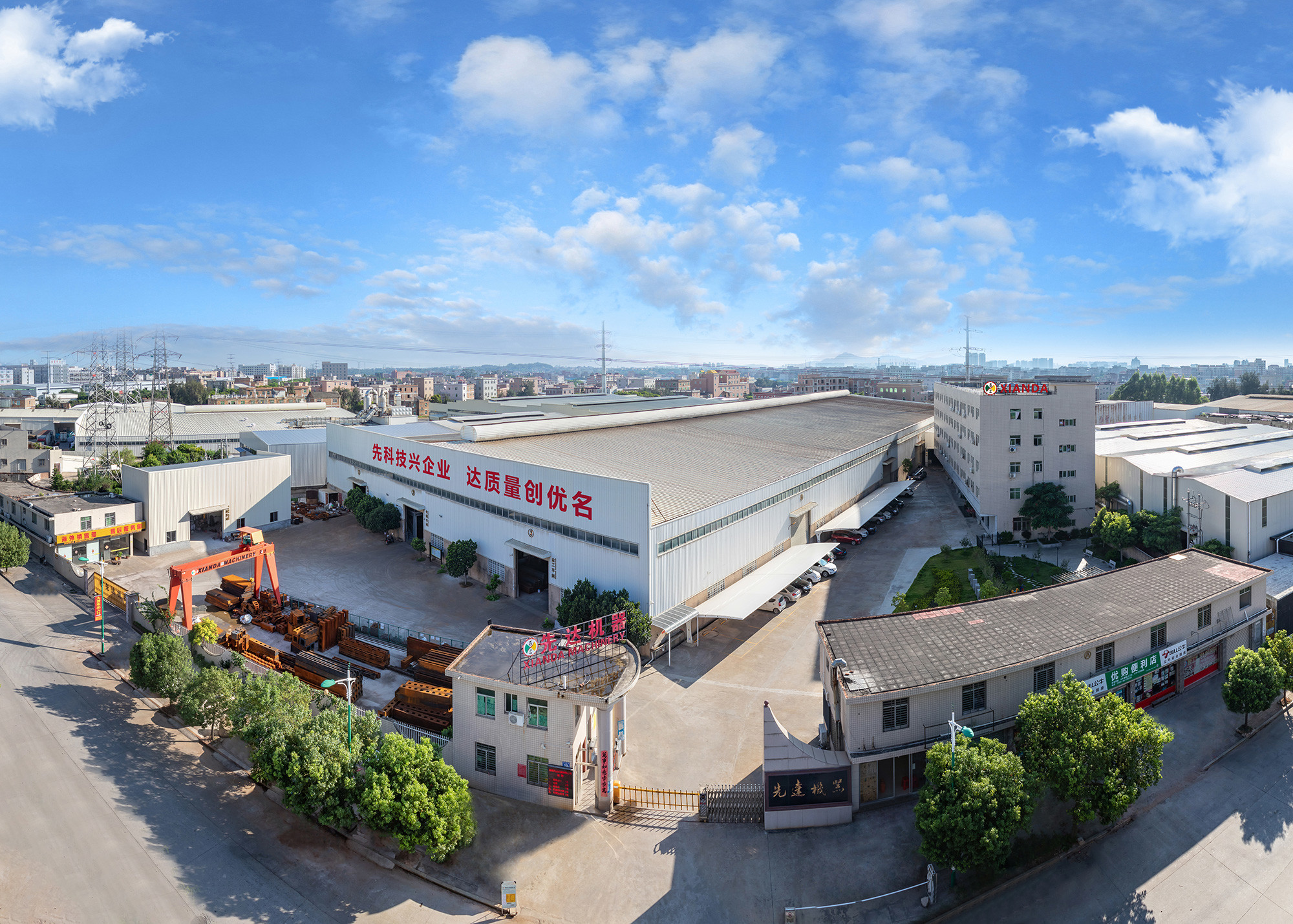

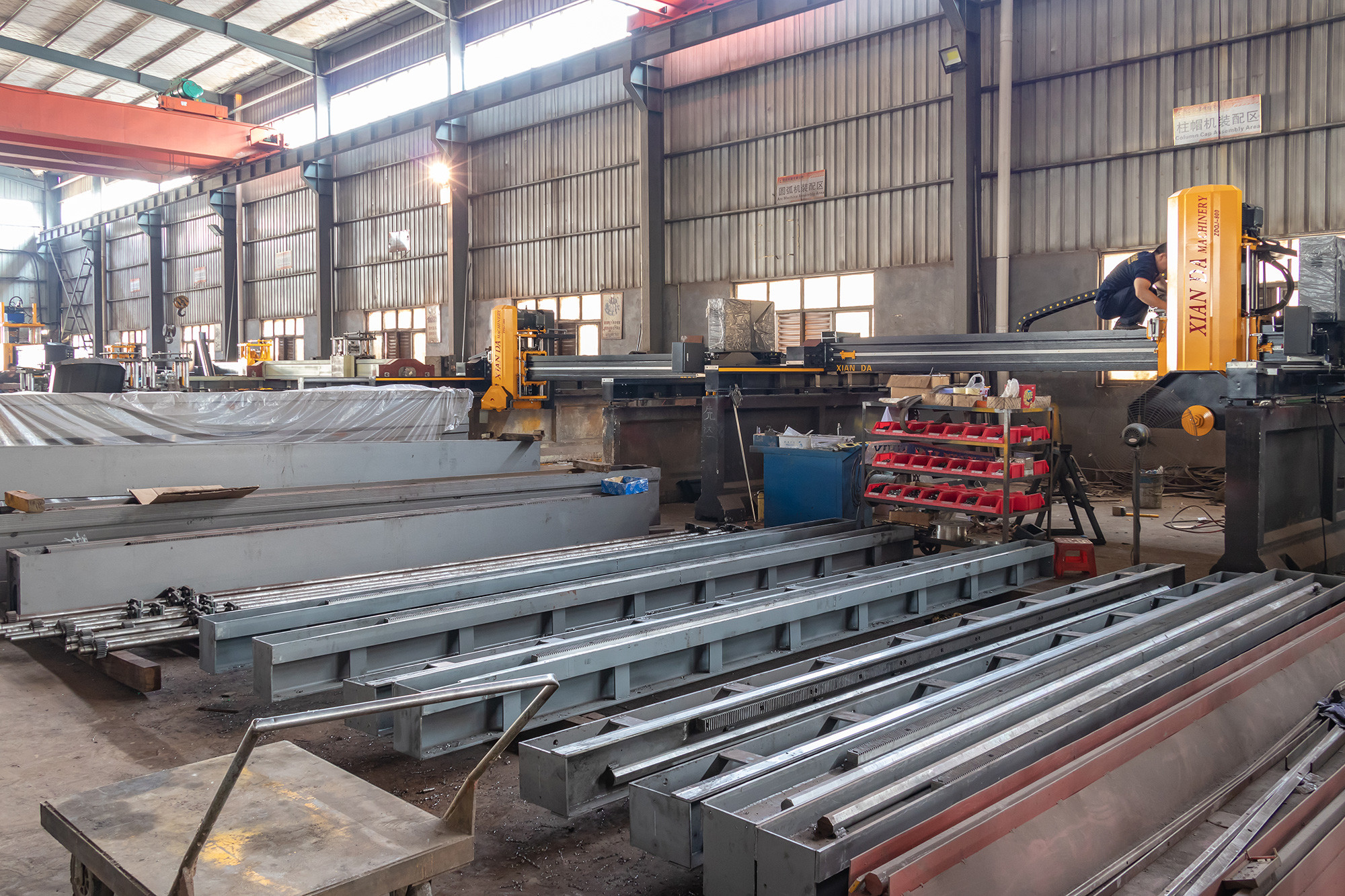

About Us
