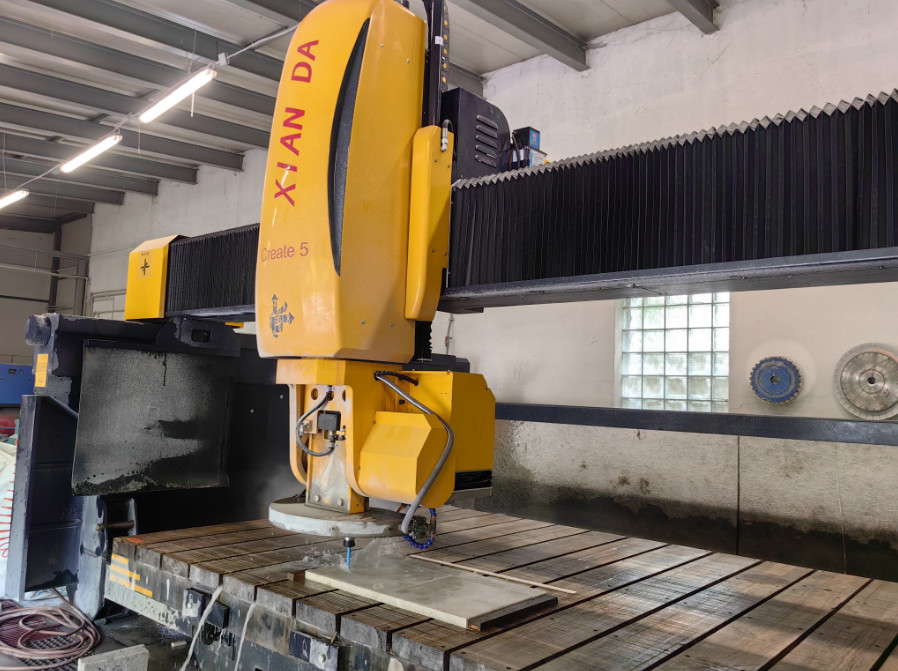

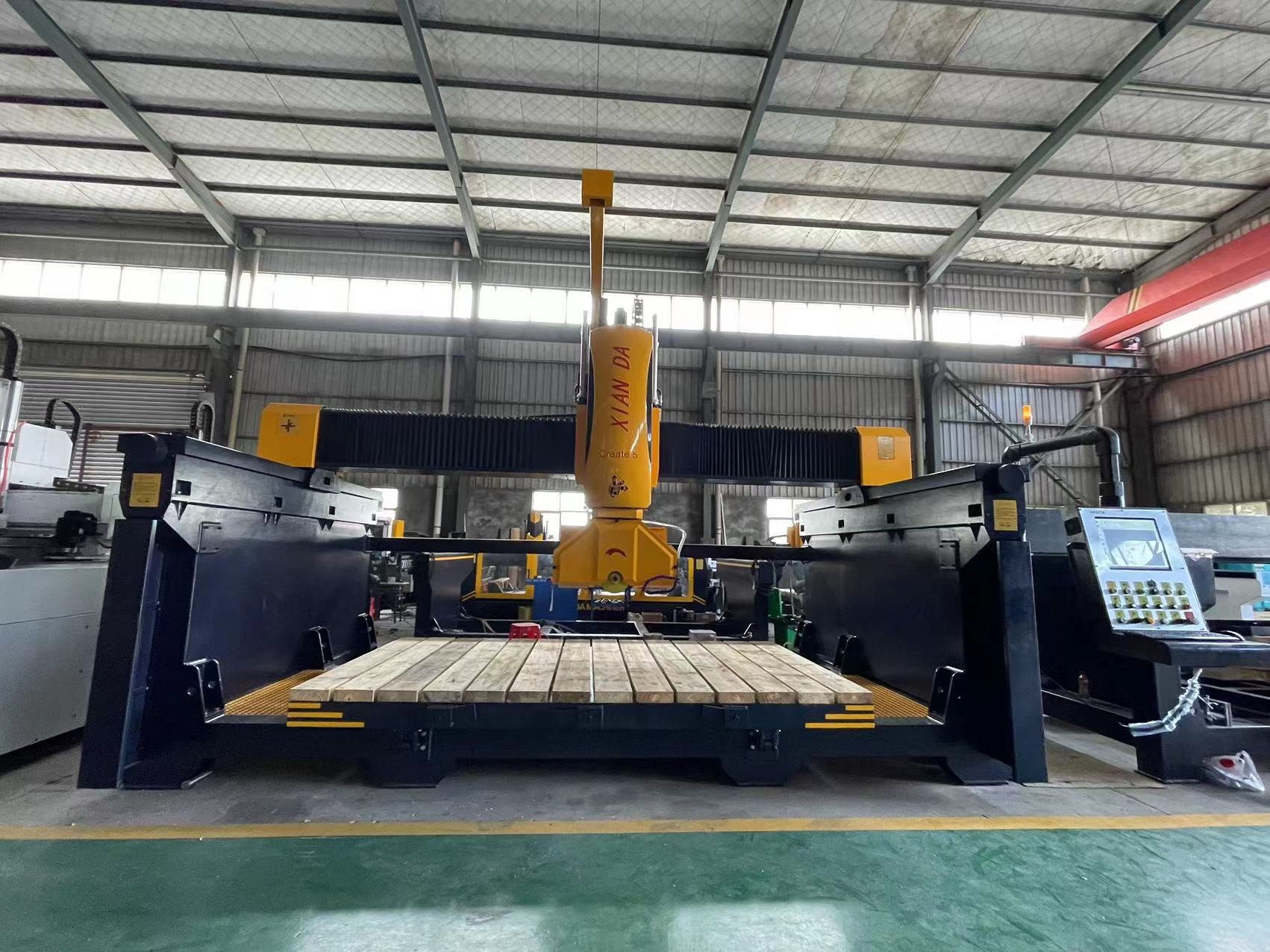

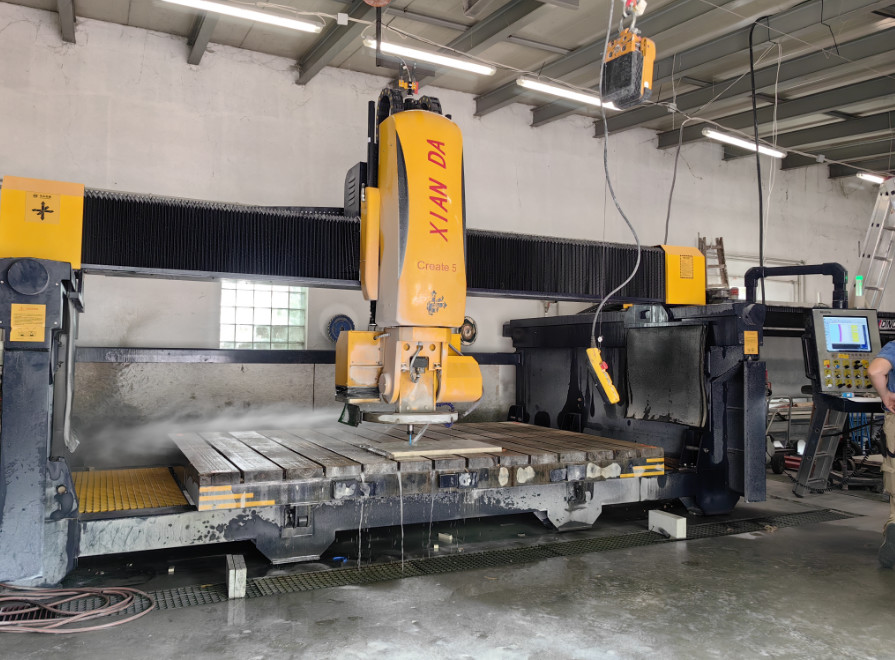

5 Axis CNC Bridge Cutting Machine For 3D Special-Shaped
Product Description:
5 Axis Bridae cuting machine adopt 5 Axis linkage CNC Svstem Control, Bus-based absolute value servo (with memontuncton for power oto, hiahn-nrecision inear quide ral, ball screw transmission, oi-immersed track structure, with multi-tunction, high precision, strong stability and other advantages. its processing functions include: arbitrary-shaped lines, fan-shapedplates, wash basin and special-shaped edge profiling, etc. The equipment has multiple processing functions, wide applicationsmall space, and simple operation. lt is a great equipment for stone processing.
Technical Parameters:
| Parameter | Unit | Create 450 |
| Blade diameter range | mm | 350-450 |
| Max processing size | mm | 3200*2000*120 |
| Lifting stroke | mm | 300 |
| Worktable size | mm | 3200*2000 |
| Table tilting degree | ° | 0-85° |
| Head rotating degree | ° | 0-360° |
| Head tilting degree | ° | 0-90° |
| Air speed | m/min | 15 |
| Repeated accuracy of positioning | mm | 0.1mm/1000 |
| Main motor | kw | 18.5(permanent magnetic synchronous motor) |
| Gross power | kw | 26 |
| Water consumption | m³/h | 3 |
| Outline dimension | mm | 5600*3600*3500 |
| Gross weight | kg | 6000
|
Support and Services:
- Installation and setup guidance to ensure proper operation of the machine
- Training for operators on how to safely and efficiently use the machine
- Regular maintenance and inspection services to keep the machine in top condition
- Repair services in the event of any issues or malfunctions
- Upgrade options to improve the machine's performance or add new features
Packing and Shipping:
Product Packaging:
- Instruction Manual
- Tools and Accessories
- Protective Cover
Shipping:
- Shipping Method: By Sea
- Delivery Time: 1 month
