5 Axis Linkage Cnc System Bridge Cutting Machine With Memory Function For Power Off
Product Description:
5 Axis Bridge cutting machine adopt 5 Axis linkage CNC System Control, Bus-based absolute value servo (with memorylunclion tor power oll), high-precision linear guide rall, ball screw transmisslon, ol-immersed track struclure, with mull-unction, high precision, strong stability and other advantages.With its powerful Gross Power, this machine can cut through these stones quickly and efficiently, saving time and labor costs.
Applications:

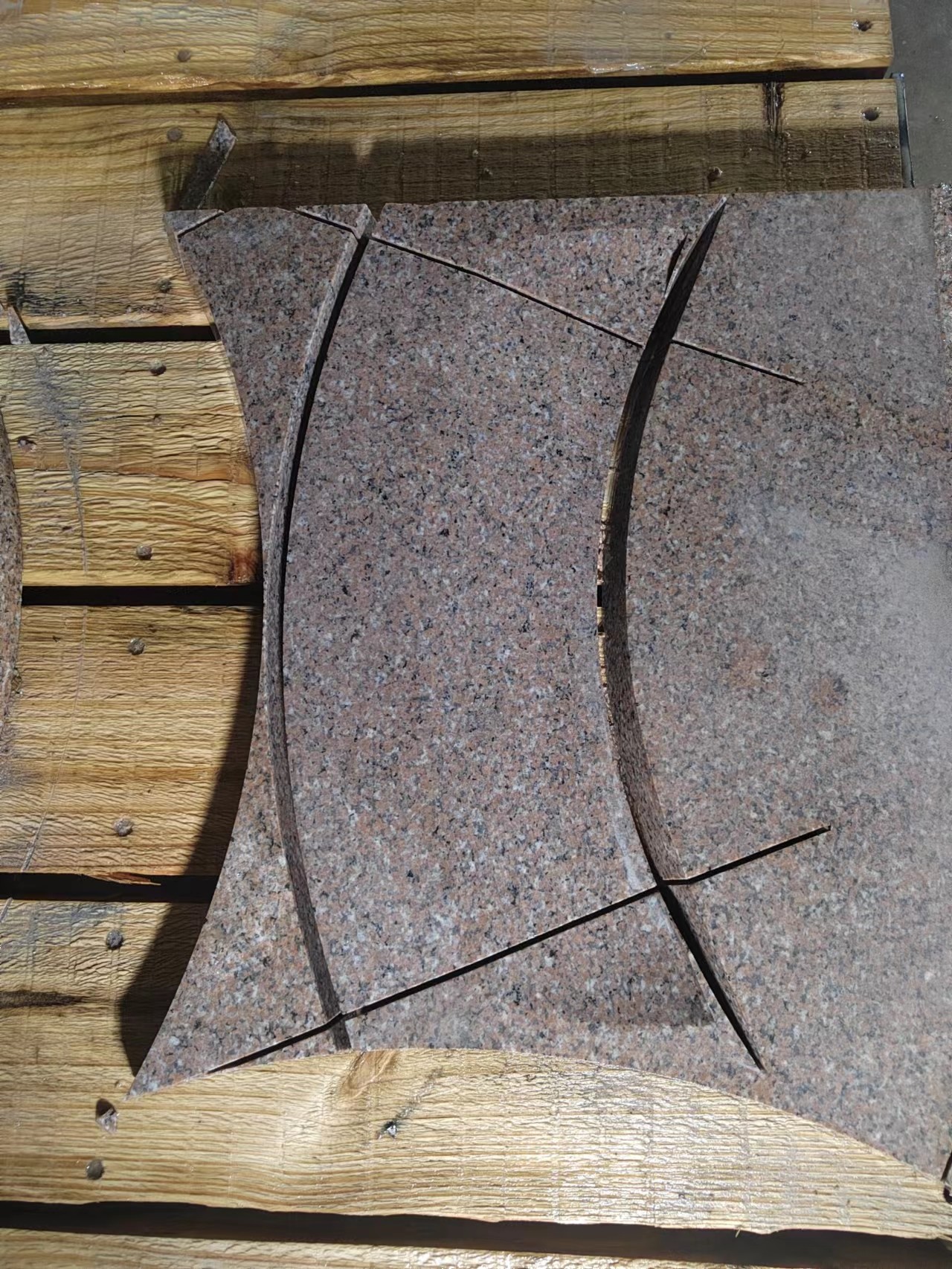

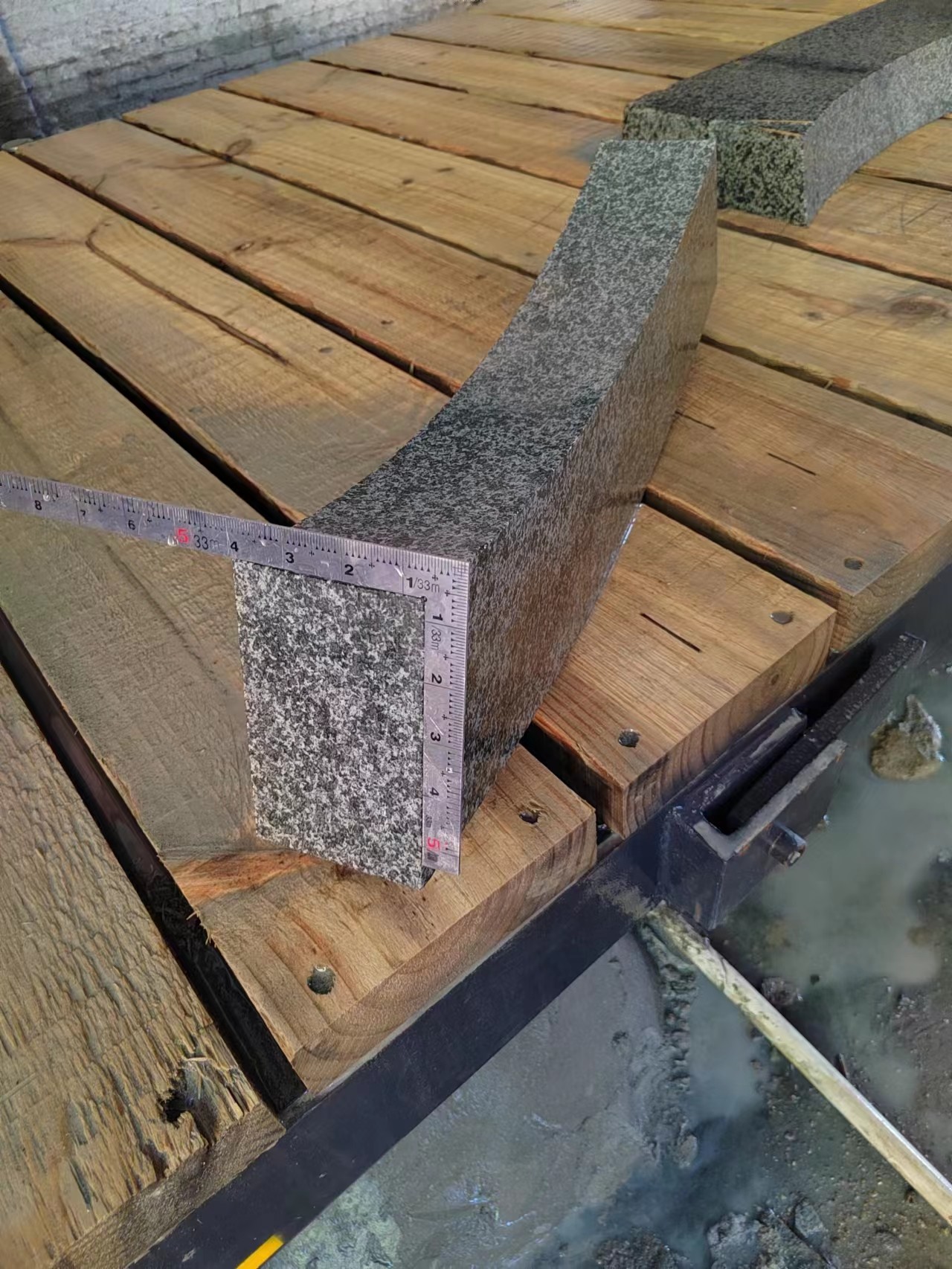

lts processing functions include: arbitrary-shaped lines, fan-shapedolates, wash basin and special-shaped edge profling, etc, The equipment has multiple processing functions, wide application,small space, and simple operation, lt is a great equipment for stone processing.The Bridge Saw Cutting Machine is perfect for use in various industries, including construction, architecture, and interior design. This machine is capable of cutting through a wide range of stones, including granite, marble, and quartz.
Technical Parameter:
| Parameter | Unit | Create 450 | Create 600 |
| Blade diameter range | mm | 350-450 | 350-600 |
| Max processing size | mm | 3200*2000*120 | 3400*2000*180 |
| Lifting stroke | mm | 300 | 500 |
| Worktable size | mm | 3200*2000 | 3400*2000 |
| Table tilting degree | ° | 0-85° | 0-85° |
| Head rotating degree | ° | 0-360° | 0-360° |
| Head tilting degree | ° | 0-90° | 0-90° |
| Air speed | m/min | 15 | 15 |
| Repeated accuracy of positioning | mm | 0.1mm/1000 | 0.1mm/1000 |
| Main motor | kw | 18.5(permanent magnetic synchronous motor) | 22(permanent magnetic synchronous motor) |
| Gross power | kw | 26 | 30 |
| Water consumption | m³/h | 3 | 3 |
| Outline dimension | mm | 5600*3600*3500 | 5800*3650*3900 |
| Gross weight | kg | 6000 | 7500
|
Support and Services:
Our team of experienced technicians is available to provide remote and on-site support for installation, training, troubleshooting, and maintenance. We offer regular maintenance services to help prolong the lifespan of the machine and prevent any potential breakdowns. In addition, we provide spare parts and upgrades for our Bridge Saw Cutting Machine to enhance its capabilities and keep up with the latest technological advancements.
